Flammable chemicals storage cabinet Corrosive Liquids Dangerous Goods Cabinet Storage Safety Cabinet
Special Features
Cabinets doors are fitted with an all stainless steel piano hinge for added protection.Internal door opening latch (as required by the Standards).Each Shelf is supplied with plastic spill trays to contain small spills and leakage.Additional powder coating of the shelving and closing assembly for added protection.
Please Note: These cabinets are designed for the safe storage of corrosives in sealed and closed containers. Good housekeeping practices are essential to ensure long service life.
Applications
Yellow Cabinet:It is used for storing various flammable items
Red Cabinet:It is used for storing various combustible items
Blue Cabinet:It is used for storing all kinds of weak corrosive items or weak acids and bases.For example: acetic acid, carbonic acid, phosphoric acid, silicic acid, etc.

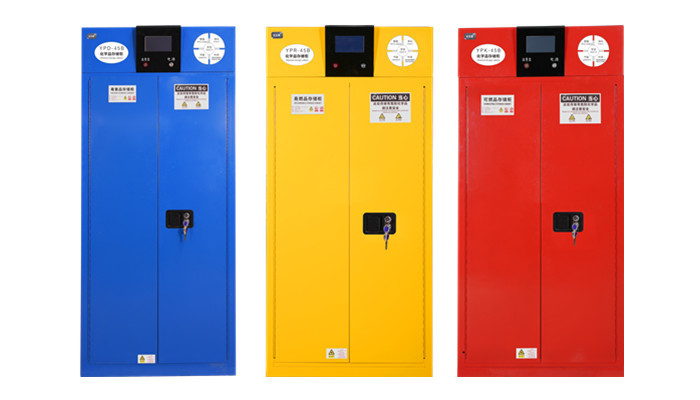

Product Display
Product Parameters
| Purification System Type |
| Model | YPD-45B | YPR-45B | YPK-45B |
| Function | Toxic Storage | Flammable Storage | Combustible Storage |
| Color | Blue | Yellow | Red |
| Cabinet Dimension | H1910 x W1090 x D460mm |
| Plate Dimension | H1000 x W350 x D20mm |
| Plate Quantity | 3pcs |
| Fan | Centrifugal fan |
| Lock Type | Double GA mechanical lock |
| Display Screen | 7-inch LCD screen |
| Filter | 1pc primary air filter, 2pcs activated carbon filters |
| Control System | VOC, temperature and humidity control alarm system |
| Storage Capacity | 45gallon |
| Optional | PP Liner + IoT |
Access Instructions for Hazardous Chemicals
1. The cabinet cannot be storaged for a long time.
2. The safety cabinet should be dedicated, and non-hazardous chemicals cannot be storaged in it.
3. The storage container should be in good condition.
4. The volatile corrosive gas should be tightly sealed with corks and placed on the upper layer in order to discharge.
5. It should be storaged in different layer or cabinet according to the chemical properties of oxidizing agent, reducing agent, strong acid, strong base, etc.
6. The hazardous chemicals with different characters should be stored separately.
